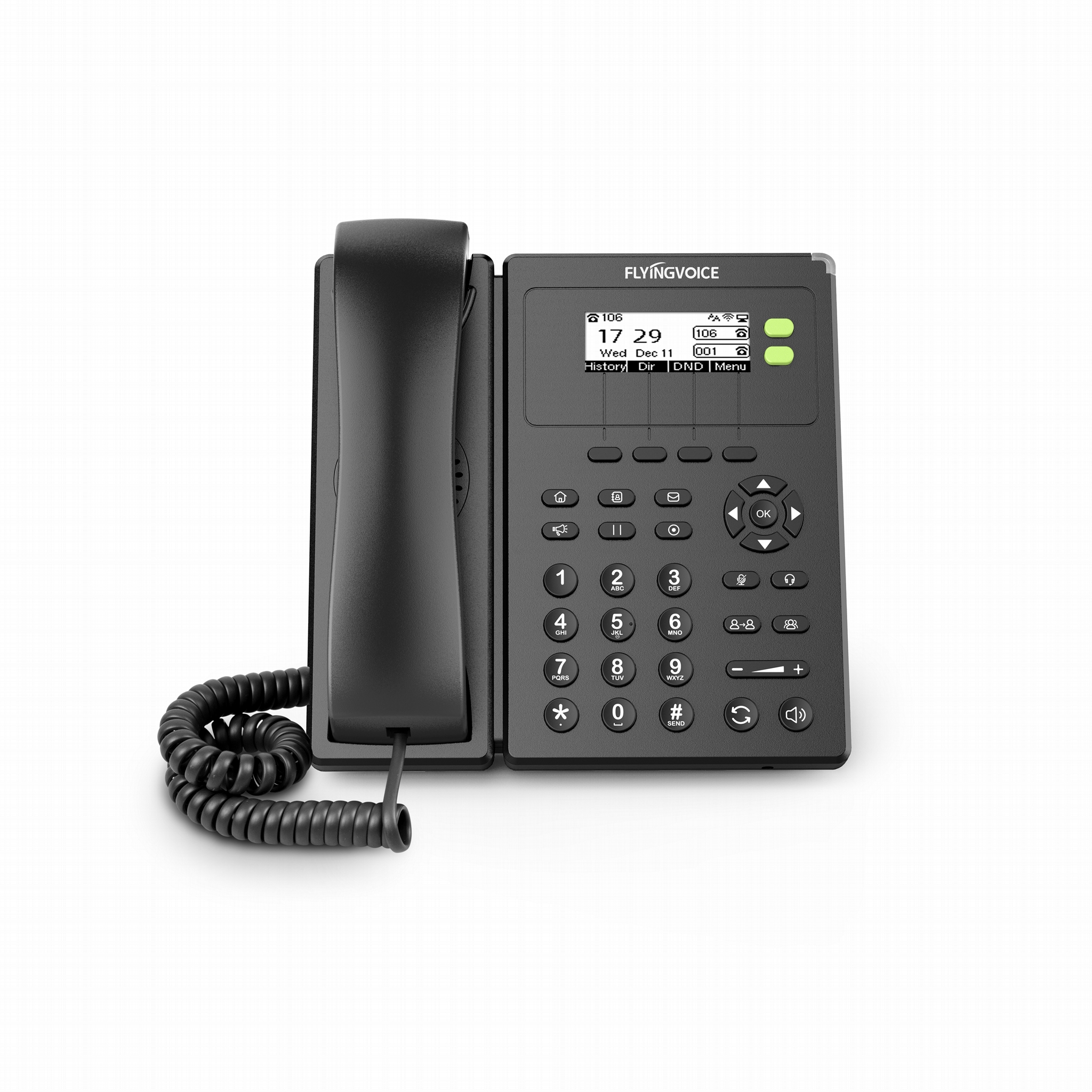

FIP10/FIP10P
Entry-level 2-Line IP Phone
FIP10/FIP10P is an entry-level business IP phone with a 128 x 64
backlit display. It supports 2 SIP accounts, 3-way conferencing,
PoE (FIP10P Only), and the RJ9 headset jack is compatible with
all major headset brands today. Benefit from flexible deployment
utilizing the 2.4G Wi-Fi frequency spectrum. Get this feature-rich
yet cost-effective VoIP phone with enhanced voice quality for
virtually any telephone application.
Key Features and Benefits
Simple and Easy to Use UI Design
FIP10/FIP10P comes with a simple design yet ergonomic design that is
easy to use. Prompts guide you through a simple installation process
making it easy to start a voice collaboration.
Flexible Deployment
Whether in your office or conference room, say goodbye to the complex
deployments, connect with people the way you like. FIP10/FIP10P
supports dual 10/100 Mbps ports, PoE(FIP10P Only) and a built-in 2.4G
Wi-Fi connection.
HD Voice Quality
FIP10/FIP10P provides excellent voice quality. We have created high-definition
sound quality solutions for handset and hands-free scenarios, even
in a noisy environment.
High Security and Compatibility
All conversations are well protected. We make sure of security algorithms
such as configuration files utilising AES, SRTP and TLS call encryption.
The FIP1X series IP phones are widely compatible with SIP-based PBX
platforms such as Asterisk, Broadsoft and 3CX.
Audio Features
> HD voice: HD handset, HD speaker
> Wideband Codec: G.722, Opus, AMR-WB(Optional),
G.711WB(Optional)
> Narrowband Codec: G.711(A/u), iLBC, G.729A/B, G.723,
G.726, AMR-NB(Optional)
> DTMF: In-band, RFC 2833 and SIP info
> Full-duplex hands-free speakerphone
> VAD, CNG, AEC, PLC, AJB, AGC
Display and Indicator
> 128 x 64px backlit B/W LCD screen
> 16 bit depth color
> LED for call and message waiting indication
> Dual-color (red/green) illuminated LEDs for line
status information
> Intuitive user interface with icons and soft keys
> Multilingual user interface
> Caller ID with name and number
> Power saving feature
Management
> Configuration: browser/phone/auto-provision
> TFTP/HTTP/HTTPS for Auto Provisioning
> TR069（TR104/TR106）
> Reset to factory, reboot
> Package tracing export, system log
> DNS/DNS SRV (RFC 1706, RFC 2782)
> NAPTR for SIP URI lookup (RFC 2915)
> Cloud device management: FCMS
> DHCP server and DHCP client
Phone Features
> 2 SIP accounts
> Call hold, mute, DND, redial, auto answer
> One-touch speed dial, hotline, SIP message
> Call forward, call waiting, call transfer (attended/blind)
> Paging, intercom
> 3-Way conferencing
> Direct IP call without SIP proxy
> Set date time manually or automatically
> Dial rule
> IP conflict detection
> 2.4 GHz Wi-Fi
> Up to 2 DSS/BLF keys
Directory
> Phone book (2000 records)
> Black list
> XML/LDAP remote phonebook
> Phonebook search/import/export
> Call history: dialed/received/missed (60 records)
IP-PBX Features
> BLF
> Anonymous call, anonymous call rejection
> Voice mail, call park, call pickup
> Message waiting indicator (MWI)
Feature Keys
> 2 Line keys
> 7 features keys: message, headset, hold, mute,
transfer, redial, hands-free speakerphone
> 4 Soft Keys
> 5 Navigate Keys
> Volume+/-
Interface
> 2x RJ45 Ports (Ethernet 10/100 Base-T)
> Support PoE (FIP10P Only)
> 1 x RJ9 Handset port
> 1 x RJ9 Headset port
> 1 x Power adapter
Others
> Color: Classic grey
> Stand with 3 adjustable angles
> Wall mountable
> AC/DC Adapter
AC Input: 100~240V, 50~60Hz
DC Output: 5V, 1A
> Power consumption (PSU): 1.5-3.5W
> Power consumption (PoE): 1.9-4.5W
> Dimension(W x H x D x T):
190mm x 188.5mm x 173mm x 41.5mm
> Relative humidity: 10%~90% (No Condensing)
> Storage temperature: -25~ 65°C
> Operation temperature: 0~45°C
Network and Security
> SIP v1 (RFC2543), v2 (RFC3261)
> Call server redundancy supported
> NAT Traversal By STUN
> Proxy mode and peer-to-peer SIP link mode
> IP assignment: Static IP and DHCP
> HTTP/HTTPS web server
> Time and date synchronization using SNTP
> SDP (RFC 2327) ，UDP/TCP
> Mutil-VLAN, DSCP and 802.1p QoS
> SRTP
> TLS
> HTTPS certificate manager
> AES encryption for configuration file
> Digest authentication
> VPN：PPTP, L2TP, OpenVPN
> IPv4 /IPv6 ,Dual stack IPv4/IPv6
> RTP/RTCP (RFC 1889, RFC 1890)
> ARP/RARP (RFC 826/903)
> IEEE802.1Q VLAN/802.1p/DSCP
> SNMPv2
> LLDP/CDP/DHCP VLAN
Package Contents
Compatible with
Certificated by
> Flyingvoice FIP10/FIP10P IP Phone
- Handset with handset cord
- Ethernet cable
- Stand
- Quick start guide
- Power adapter (Optional)
> Qty/CTN: 10 PCS
> N.W/CTN: 8.75 kg
> G.W/CTN: 9.48 kg
> Giftbox size: 270mm x 195mm x 78mm
> Carton meas: 420mm x 420mm x 290mm
